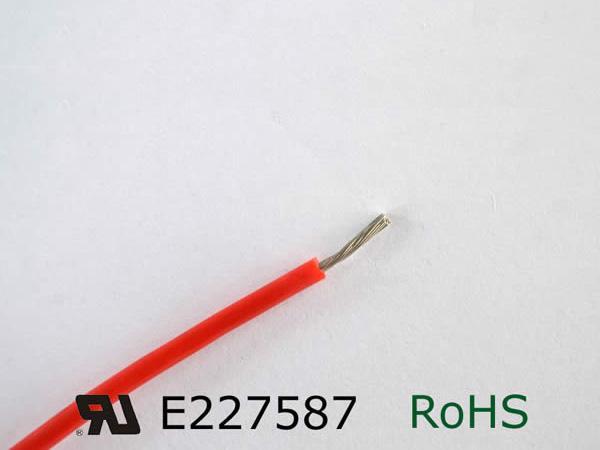

UL 3133 Silicone Rubber Shield Electrical Wire
The UL 3133 silicone rubber shield electrical wire is made up of a silicone rubber insulator and a copper conductor with a nickel-coated, silver-plated or tinned surface. Its testing and rated voltages are 2000V and 600V, respectively. The operating temperature is from -60℃ to +150℃. Available in white, blue, red, black, brown, yellow, green, transparent and yellow/green colors, this electrical wire can be used for internal wiring of temperature sensors, household appliances, electronic devices, lighting appliances, etc.
Specifications| Conductor | Insulator | Electrical Characteristic | |||||
| AWG | Conductor construction NO. ×φ mm |
Diameter mm |
Nominal Thickness mm |
Overall Diameter mm |
Max. Diameter mm |
Max. Conductor Resistance at 20°C Ohm/Km |
Permissible Ampacity 20°C -AMR |
| 28 | 7×0.12 | 0.37 | 0.76 | 1.89 | 2.1 | 218 | 1.97 |
| 26 | 7×0.15 | 0.46 | 0.76 | 1.98 | 2.18 | 145.65 | 2.16 |
| 24 | 7×0.20 | 0.61 | 0.76 | 2.13 | 2.33 | 93.25 | 2.68 |
| 22 | 7×0.25 | 0.79 | 0.76 | 2.31 | 2.51 | 56.8 | 4.42 |
| 20 | 7×0.30 | 0.92 | 0.76 | 2.44 | 2.64 | 40.1 | 7.07 |
| 18 | 7×0.40 | 1.19 | 0.76 | 2.71 | 2.91 | 23 | 11.21 |
| 16 | 7×0.50 | 1.53 | 0.76 | 3.05 | 3.25 | 14.6 | 13.7 |
HAOCHENG WIRE & CABLE is a specialized UL 3133 silicone rubber shield electrical wire manufacturer and supplier in China. Our company offers a vast range of products, including heating tape, aluminum foil heater, and VDE Teflon wire, among others.
