UL 3253 High Temperature Electrical Wire

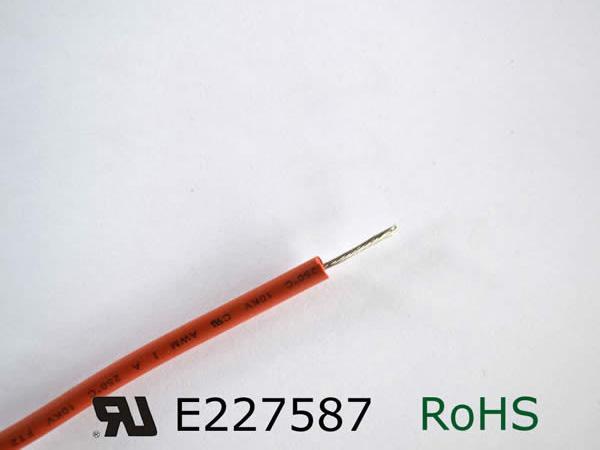

Our UL 3253 high temperature electrical wire comes with the nickel plated copper conductor and silicone rubber insulator. Its color is iron oxide red. Furthermore, the nominal voltage and testing voltage are 300V and 2000V, separately. This product works at the temperature from -60℃ to 250℃ and its O.D. tolerance is ±0.10mm. It can be applied as the internal wire of various electrical devices.
Specifications| Conductor | Insulator | Electrical Characteristic | |||
| AWG | Conductor Construction NO.× Φ mm | Diameter mm | Insulator Thickness mm | Overall Diameter mm | Max. Conductor Resistance at 20°C Ohm/Km |
| 26 | 7×0.15 | 0.46 | 0.76 | 1.98 | 150 |
| 24 | 7×0.20 | 0.61 | 2.13 | 94.2 | |
| 22 | 7×0.25 | 0.76 | 2.28 | 59.4 | |
| 20 | 7×0.30 | 0.95 | 2.47 | 36.7 | |
| 18 | 7×0.40 | 1.20 | 2.72 | 23.2 | |
| 16 | 7×0.50 | 1.50 | 3.02 | 14.6 | |
| 14 | 41/0.25 | 1.85 | 3.37 | 8.96 | |
As a specialized UL 3253 high temperature electrical wire manufacturer in China, HAOCHENG WIRE & CABLE also offers VDE silicone wire, CCC/IEC silicone rubber wire, wire and cable, and more.
