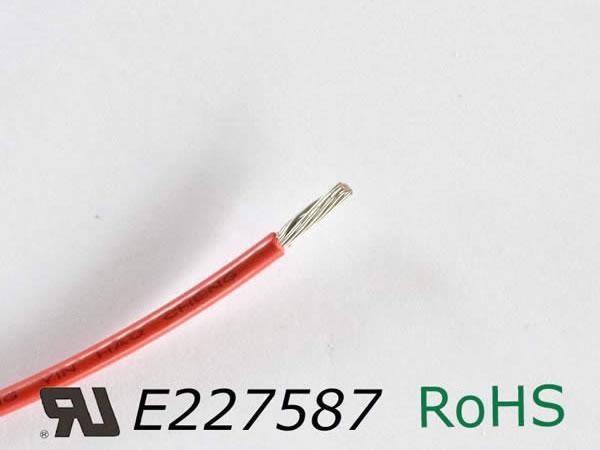

UL 1727 Teflon Insulated Wire / Cable
Detailed Information
1. The insulator of the UL 1727 Teflon insulated wire: PFA Teflon
2. Conductor: tinned copper
3. Temperature range: -100℃～+250℃
4. O.D. tolerance: ± 0.10mm
5. Testing voltage: 2500V
6. Nominal voltage: 600V
7. Color: white, blue, red, black, brown, yellow, green, transparent, yellow/green
| Conductor | Insulator | Electrical Characteristic | ||||
| AWG | Conductor Construction NO. ×φ mm | Diameter mm | Insulator Thickness mm | Over Diameter mm | Max. Conductor Resistance at 20 ℃ Ohm/km | Permissible Ampacity 20℃-AMR |
| 30 | 1×0.25 | 0.25 | 0.2 | 0.65 | 361.13 | 1.32 |
| 28 | 1×0.31 | 0.31 | 0.25 | 0.81 | 227.39 | 2.11 |
| 26 | 7×0.15 | 0.46 | 0.46 | 1.38 | 148.94 | 3.22 |
| 19×0.10 | 0.5 | 0.46 | 1.42 | 148.94 | 3.22 | |
| 24 | 7×0.20 | 0.61 | 0.46 | 1.53 | 93.25 | 5.15 |
| 19×0.12 | 0.6 | 0.46 | 1.52 | 93.25 | 5.15 | |
| 22 | 7×0.25 | 0.76 | 0.46 | 1.68 | 55 | 8.37 |
| 19×0.15 | 0.76 | 0.46 | 1.68 | 55 | 8.37 | |
| 20 | 7×0.31 | 0.95 | 0.46 | 1.87 | 34.6 | 13.87 |
| 19×0.19 | 0.96 | 0.46 | 1.88 | 34.6 | 13.87 | |
| 18 | 7×0.39 | 1.19 | 0.46 | 2.11 | 21.8 | 22.02 |
| 19×0.235 | 1.18 | 0.46 | 2.1 | 21.8 | 22.02 | |
| 16 | 7×0.50 | 1.53 | 0.46 | 2.45 | 13.7 | 35.04 |
| 19×0.30 | 1.51 | 0.46 | 2.43 | 13.7 | 35.04 | |
| 14 | 19×0.37 | 1.86 | 0.5 | 2.86 | 8.62 | 55.68 |
| 12 | 19×0.46 | 2.32 | 0.5 | 3.32 | 5.43 | 88.4 |
| 10 | 37×0.43 | 3.02 | 0.5 | 4.02 | 3.41 | 140.76 |
As a China-based UL 1727 Teflon insulated wire / cable manufacturer and supplier, HAOCHENG WIRE & CABLE offers a broad range of products that includes PVC insulated wire, multicore cable, XLPE wire / cable, and more.
