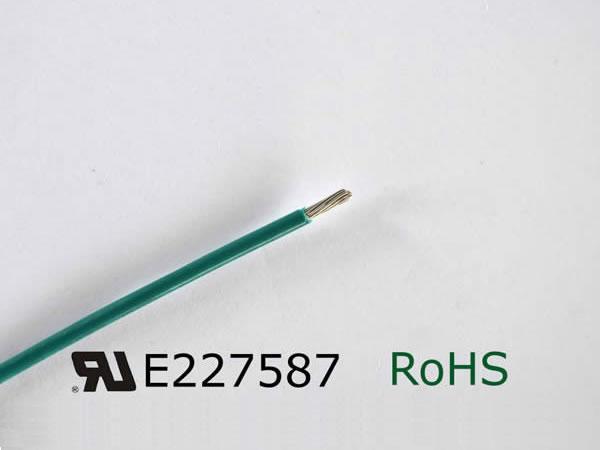

UL 1933 Teflon Insulated Wire / Cable
Detailed Information
1. Testing voltage of UL 1933 Teflon insulated wire: 2000V
2. Rated voltage: 300V
3. O.D. Tolerance: ±0.10mm
4. Temperance range: -100℃~250℃
5. Insulator: PFA Teflon
6. Conductor: bare or tinned copper
7. Colors: white, blue, red, black, brown, yellow, green, transparent and yellow/green
| Conductor | Insulator | Electrical Characteristic | |||
| AWG | Conductor Construction NO.× Φ mm | Diameter mm | Insulator Thickness mm | Overall Diameter mm | Max. Conductor Resistance at 20 ℃ Ohm/km |
| 30 | 1×0.25 | 0.25 | 0.15 | 0.56 | 381 |
| 28 | 1×1.31 | 0.31 | 0.62 | 239 | |
| 26 | 7×0.15 | 0.46 | 0.77 | 150 | |
| 19×0.10 | 0.50 | 0.81 | 150 | ||
| 24 | 7×0.20 | 0.61 | 0.91 | 94.2 | |
| 19×0.12 | 0.60 | 0.91 | 94.2 | ||
| 22 | 7×0.25 | 0.76 | 1.07 | 59.4 | |
| 19×0.15 | 0.76 | 1.07 | 59.4 | ||
| 20 | 7×0.31 | 0.95 | 1.26 | 36.7 | |
| 19×0.19 | 0.96 | 1.26 | 36.7 | ||
Our company is a professional UL 1933 Teflon insulated wire / cable manufacturer and supplier in China. We provide a vast array of products, including high temperature sleeve, multicore cable, silicone heating wire, silicone rubber heater, etc.
Jiangyin Haocheng Electrical Appliance Wire and Cable Co., Ltd.
Add.: Qingyang Industrial Park, Jiangyin City, Jiangsu Province, China
Tele.: +86-510-86517509
Fax.: +86-510-86915121
E-mail:
ellen@jyhc.com
Contact Person: ELLEN LEE
