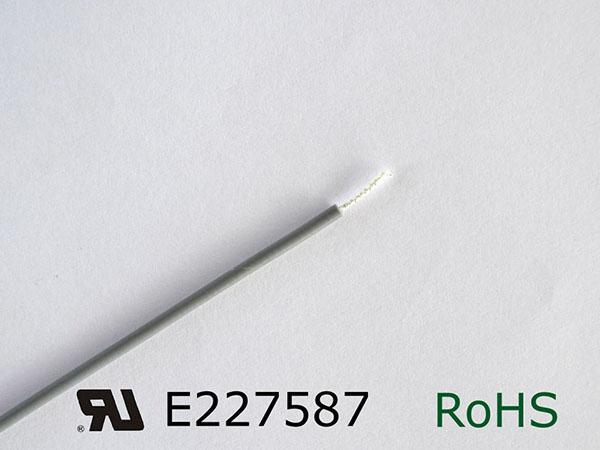

UL 3222 Silicone Insulated Heating Wire
TECHNICAL DATA
Nominal Voltage：300V
Temperance Range：-60℃~150℃
O.D.Tolerance：±0.10mm
Testing Voltage:2000V
Conductor： Resistance Wire Alloy
Insulation：Silicone Rubber
Insulator Thickness： 1.14mm
Colours：White-Blue-Red-Black-Brown-Yellow-Green -Yellow/Green
According to the customer’s request, the particular specification can be made from 1Ω/M~1000Ω/M.
Application：This product is the same with the inner fixed wires for the subassembly of the heating ,the heat preservation and the defroster etc. Such as the refrigerator ,the heating product ,the rice cooker ,he towel cabinet,the massor and the seating washer etc.
