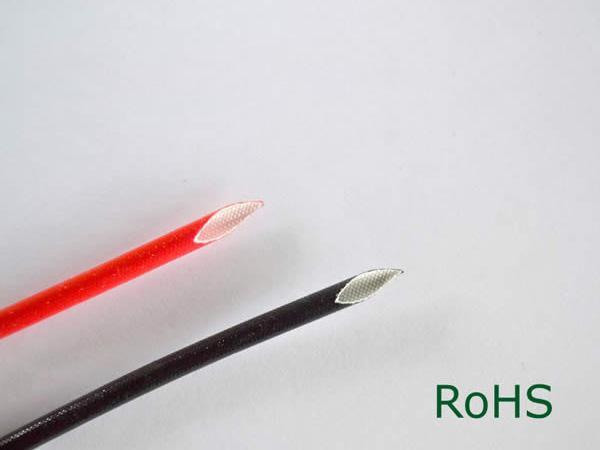

Fiberglass Sleeve

Inquiry Form

Detailed Information
1.Testing Voltage of Fiberglass Sleeve: 1500V
2. Nominal Voltage: 300V
3. Temperature Range: -60℃ ~ +200℃
4. O.D. Tolerance: -0.2~ +0.3mm
5. Flammability: ULVW-1
6. Colors: white, red, black, brown and yellow

Technical Specifications
Size(ID) mm 1200V 200℃ 1500V 200℃ 2500V 200℃
Mini. Thickness mm Length/Coil(m) Mini. Thickness mm Length/Coil(m) Mini. Thickness mm Length/Coil(m)
1 0.2 100 0.25 100 0.3 100
1.5 0.2 100 0.25 100 0.3 100
2 0.2 100 0.25 100 0.3 100
2.5 0.2 100 0.25 100 0.3 100
3 0.25 100 0.25 100 0.3 100
4 0.25 100 0.3 100 0.35 100
5 0.3 100 0.3 100 0.4 100
6 0.35 100 0.3 100 0.4 100
7 0.35 100 0.3 100 0.4 100
8 0.4 50 0.4 50 0.5 50

We are a professional fiberglass sleeve manufacturer and supplier in China. We also provide UL silicone wire, PVC insulated wire, Teflon wire / cable, multicore cable, and much more.
