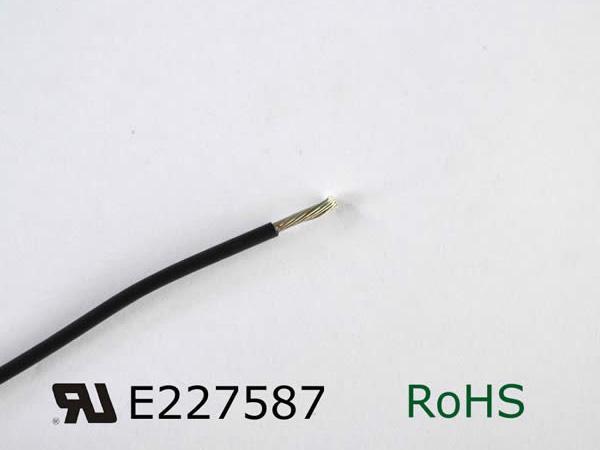

PVC Insulated UL 1015 Wire
Detailed Information
1. Nominal voltage of PVC insulated UL 1015 wire: 600V
2. Temperance range: -30℃~105℃
3. O.D. tolerance: ±0.10mm
4. Testing voltage: 2000V
5. Conductor material: bare or tinned copper
6. Insulator material: PVC
7. Color: white, blue, red, black, brown, yellow, green, transparent, yellow/green
| Conductor | Insulator | Electrical Characteristics | |||
| AWG | Conductor Construction NO. ×Φ mm |
Diameter (mm) |
Insulation Thickness (mm) | Overall Diameter (mm) |
Max. Conductor Resistance at 20°C Ohm/Km |
| 24 | 11×0.16 | 0.61 | 0.76 | 2.13 | 94.2 |
| 1×0.50 | 0.5 | 0.76 | 2.02 | 94.2 | |
| 22 | 17×0.16 | 0.76 | 0.76 | 2.28 | 59.4 |
| 1 ×0.60 | 0.6 | 0.76 | 2.12 | 59.4 | |
| 20 | 20×0.18 | 0.95 | 0.76 | 2.47 | 36.7 |
| 1×0.8 | 0.8 | 0.76 | 2.32 | 36.7 | |
| 18 | 34×0.18 | 1.21 | 0.76 | 2.73 | 23.2 |
| 1×1.0 | 1.0 | 0.76 | 2.52 | 23.2 | |
| 16 | 26×0.25 | 1.47 | 0.76 | 2.99 | 14.6 |
| 14 | 41×0.25 | 1.85 | 0.76 | 3.37 | 8.96 |
| 12 | 65×0.25 | 2.33 | 0.76 | 3.85 | 5.64 |
| 10 | 105×0.25 | 2.96 | 0.76 | 4.48 | 3.55 |
HAOCHENG WIRE & CABLE is an experienced PVC insulated UL 1015 wire manufacturer and supplier in China. We provide various types of products such as silicone heating plate, special heating wire / cable, and fiberglass sleeve.
